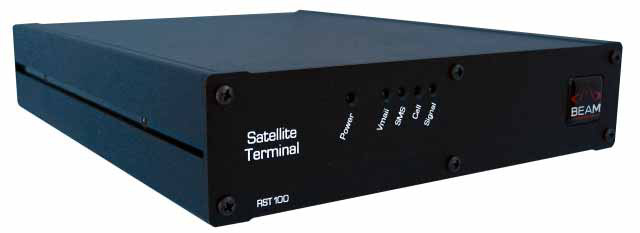

The Beam RST100 Remote Satellite Terminal for Iridium is a highly featured communications terminal providing intelligent RJ11/POTS/PBX voice, data and messaging services. The terminal is capable of presenting Dial, Busy and Ring tones to suit country specific requirements as well as auto-dial or restricted dial functionality. This Iridium terminal also supports the use of standard phone equipment making it ideal for all In-building and maritime applications.
Terminal Features:
Supports standard phone equipment
Connect to PABX
Compact intelligent handset
Uses intelligent handset
SMS/ SMS-MO from terminal
Supports SMS over POTS
SSAS compatible
Tracking & Monitoring Capable
Intelligent Processor & Interface
Phone Number Processing
Line Reversal for Pay phone use
Auto-dial & Speed Dial options
Secure SIM Card Enclosure
Local and Remote Configuration
External Ringer available
Supports Back up Battery
Incorporates Call Logging
Fully Certified corrosion / vibration
Easy to install
Network Service Features
Low cost airtime rates
No regions or zones
Crew calling service
Pre or post paid
Itemized billing
Support all data services
Support all voice services
Support Iridium Fax terminal
Power Specifications
Power input voltage: 11 - 32 V DC
Power Consumption (AMPS): 12 V DC 24 V DC
Stand-by: 0.35 0.16
Transmit: 0.51 0.25
Stand-by - inc handset: 0.47 0.22
Transmit - inc handset: 0.59 0.29
Environment Specifications
Temperature: Operating Range: -15°C to +55°C (+5°F to +131°F) Storage: -30°C to +70°C (-22°F to 158°F)
Humidity: 93% non condensing
Vibration: 2 Hz - 13.2 Hz & 13.2 Hx - 100 hz
Corrosion: 40 °C with 90% - 95% relative humidity after 2 hours salt spray
Connectors/ Interfaces
Intelligent Handset: RJ45 DPL BUS
Telephone/ POTS: RJ-11 2 -wire / TN12 or 600?
Data Port: RS232 Serial Interface
Log Port: RS232 Serial Interface
Power: 2 Pin screw type
LED/ Display
Power: Green
Signal: 3 Colour
Call: Yellow
Voicemail: Green
Physical Specifications
Dimensions (Unit Only): 225 x 271 x 45 mm 8.8 x 10.6 x 1.2 inches
Dimensions (Packed): 400 x 325 x 90 mm 15.7 x 12.8 x 3.5 inches
