Track your assets anywhere on earth! Applied Satellite Engineering has taken low-cost Short Burst Data (SBD) communications to new heights! Integrated GPS combined with your own text messages and reporting conditions gives you the most powerful and efficient tracking solution available. You can even connect your own sensors and add them to your reports!
The SBDpro terminal is an extremely versatile and efficient solution for gathering remote data and transmitting it using the Iridium Short Burst Data (SBD) service. The SBDpro monitors and records user-connected switches and voltage inputs, combines this data with built-in GPS data, temperature readings, UTC time, and custom text messages, and securely transmits to your desktop or server application. Status of practically any type of sensor can be transmitted or used as a transmission trigger. You configure the SBDpro to transmit only the data you want at times you want—minimizing airtime costs. The SBDpro is easily configured via a standard e-mail SBD message or through a direct RS232C connection.
Applications
Remote Data reporting and Control
Monitor Cathodic Protection Systems
Pipeline Integrity Reporting
Remote Fault Reporting
Track Expensive Assests for Movement and Location
Monitor Equipment Usage for Maintenance Programs
Sonobuoy Integration
Monitor Acoustics, Temperature, Pressure, Wind
Excellent Wind Farm Monitoring and Protection Applications
Control Remote On/Off Features for Asset Protection
Certifications and approvals (pending): Iridium, CE and IEC 60945.
Advanced Features
Simple text-based configuration scripts get you up and running quickly.
Reporting intervals can range from 15 seconds to 1 year.
Configurable over-the-air or via serial interface.
Tested configuration scripts available for download and editing.
Applications
Digital and analog input/output interfaces for ultimate flexibility
Low power modes for battery/solar operation. You can even monitor your battery level with one of the analog inputs and send a report when it gets too low!
Physical
Length: 5.8 in.
Width: 2.61 in.
Height: 1.65 in.
Weight: 1.0 lb
Operating temperature range: –30°C to +60°C
Operating Parameters
Operating Voltage: 9 – 32VDC (unregulated, 100mV max ripple)
Power Consumption - Standby: 0.5W
Power Consumption - Average: 1.75W
Power Consumption - Peak: 10W
Operating Temperature: -30C to +60C
Storage Temperature: -40C to +85C
Operating Humidity: ≤ 75% RH
Storage Humidity: ≤ 93% RH
Exposure: Water resistant
Internal Features
Temperature Monitor: 025C to +85C (accurate within +/-2C)
GPS Coordinates: Latitude/Longitude, Altitude (see GPS specs)
GPS Specifications
Channels: up to 12
Accuracy: Position 5-25 meter CEP without SA (nondifferential)
Accuracy: Velocity 0.1 meters/second, without SA
Accuracy: Time 1 microsecond synchronized GPS time

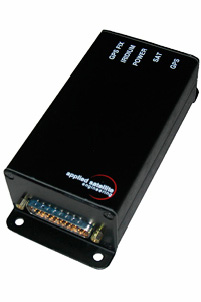

; "ASE SBDPro Tracking Terminal")
;)
;)
